Deck equipment

Maritime deck equipment.

MDO designs a wide range of deck equipment for maritime applications. All systems are engineered in-house, from concept development and detailed design to strength calculations and class approval support. Solutions can be provided in accordance with applicable LSA and classification requirements.

Davits

Fixed, gravity and electro-hydraulically operated davits for lifeboats, rescue boats and other survival craft. Where space is limited, combined davits can handle multiple craft from a single installation. All systems are tailored to the operational requirements of the vessel and its crew.

Twin gantry davit above a rescue boat, cutaway view inside the boat hangar — Gantry davit · wave-compensated twin winch · cutaway

Hydraulic pivot davit holding a lifeboat in the boarding position — Hydraulic pivot davit · boarding position

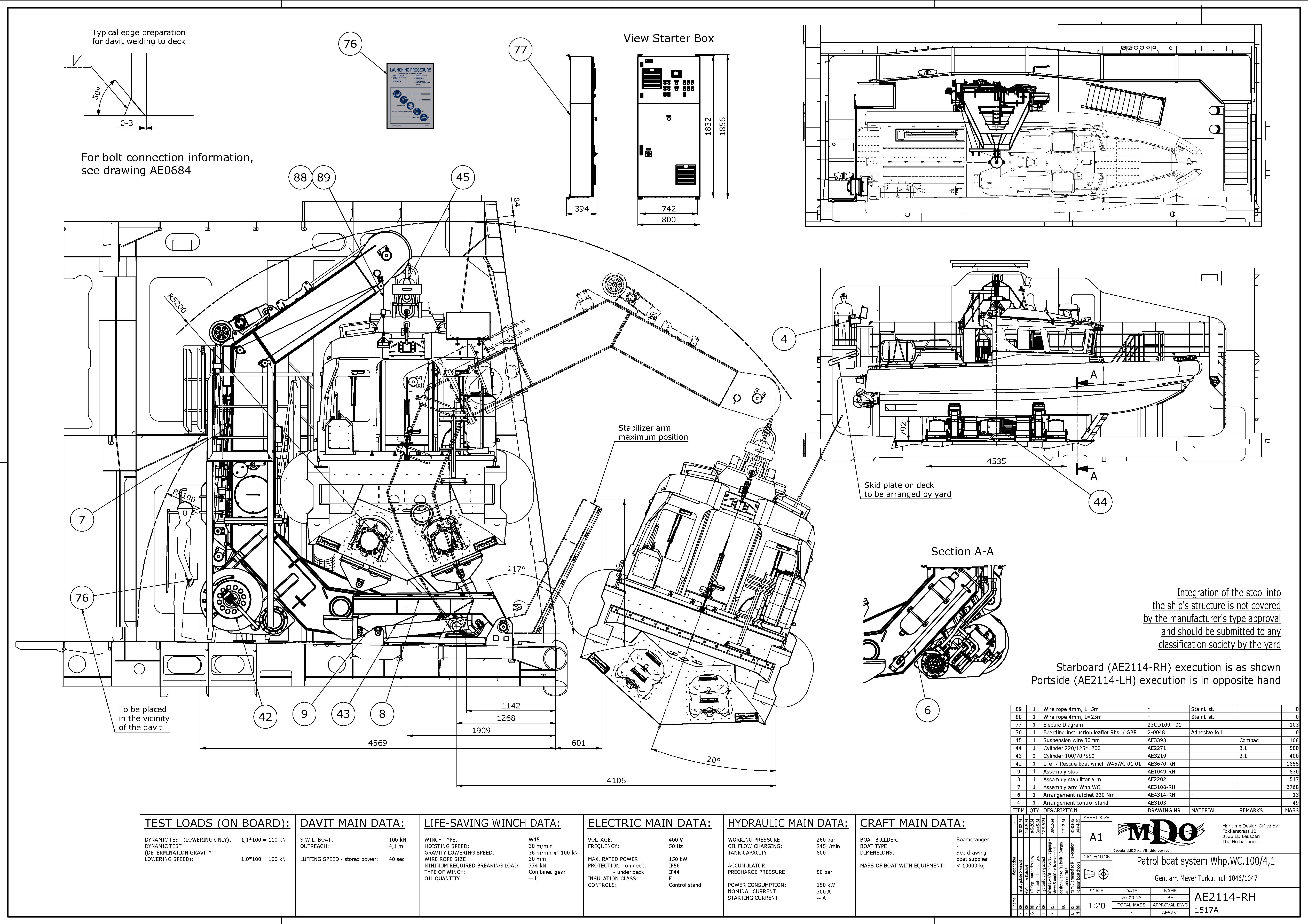

General arrangement drawing AE2114-RH of the patrol boat davit system Whp.WC.100/4,1 — General arrangement · patrol boat system Whp.WC.100/4,1 · dwg AE2114-RH · scale 1:20

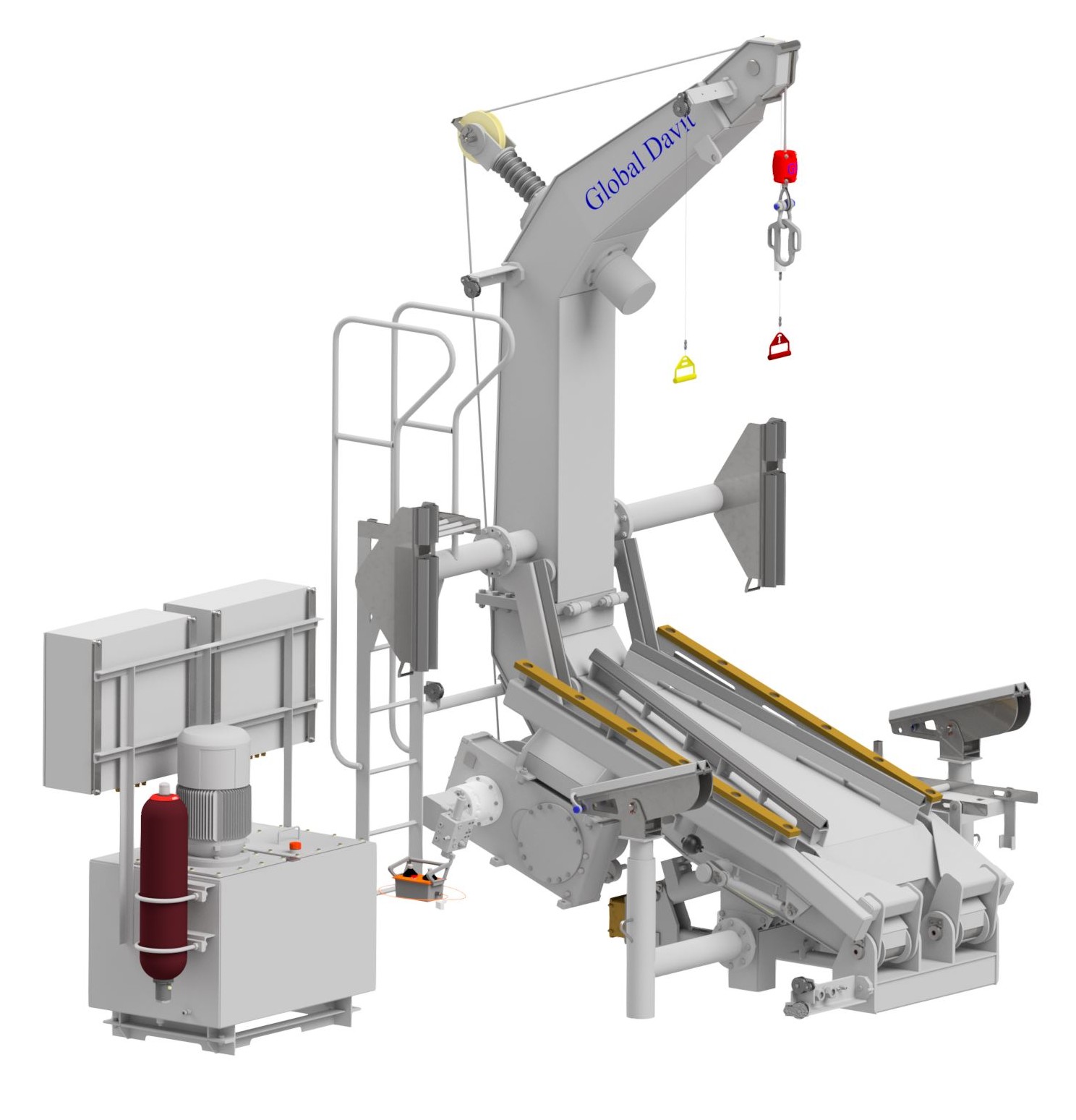

Hydraulic pivot davit for a rescue boat, with cradle and hydraulic power unit — Pivot davit · hydraulic power unit

Gravity

Gravity davits

Traditional gravity davits provide reliable launching without external power, even at heights exceeding 60 meters.

Hydraulic pivot

Hydraulic pivot davits

Compact hydraulically operated davits designed for controlled deployment and recovery where installation space is limited, including enclosed hangars and sheltered launching areas.

Combined

Combined davits

Davit systems combining multiple survival craft operations in a single installation, optimizing deck space.

Fast rescue

Fast rescue boat davits can be configured with wave compensation, shock absorption and stabilization systems to support safe launch and recovery operations in demanding sea conditions.

Cranes

Directly or remotely operated deck cranes for a variety of applications on vessels, offshore installations and port facilities. Designs range from compact service cranes for routine onboard handling to specialized systems for offshore installations and hazardous areas. Depending on operational requirements, cranes can be integrated with launching arrangements, dedicated hydraulic power units or explosion-proof equipment.

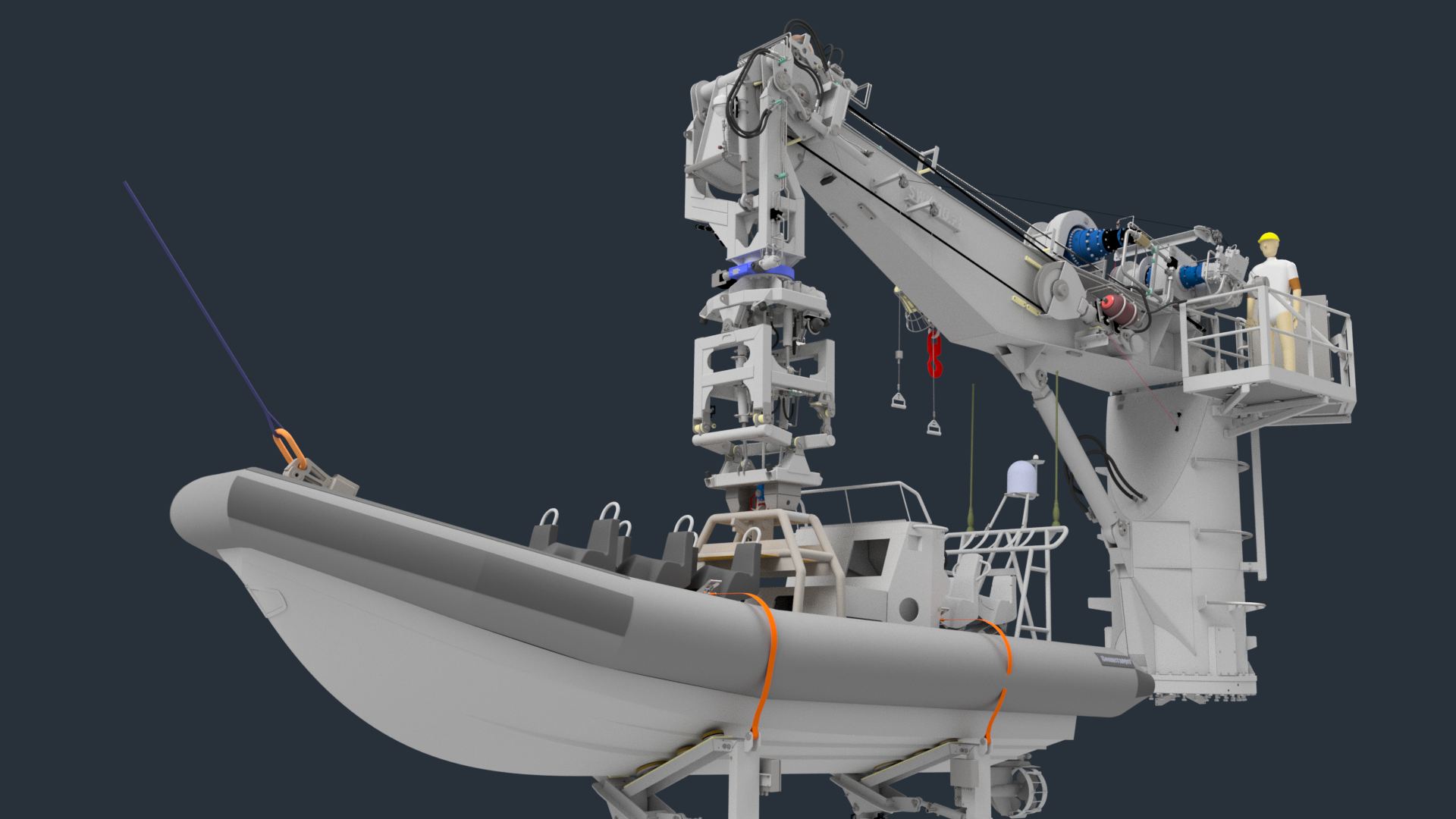

Slewing rescue boat crane with the boat in the stowed position and the operator platform alongside — Slewing crane · stowed position · operator platform

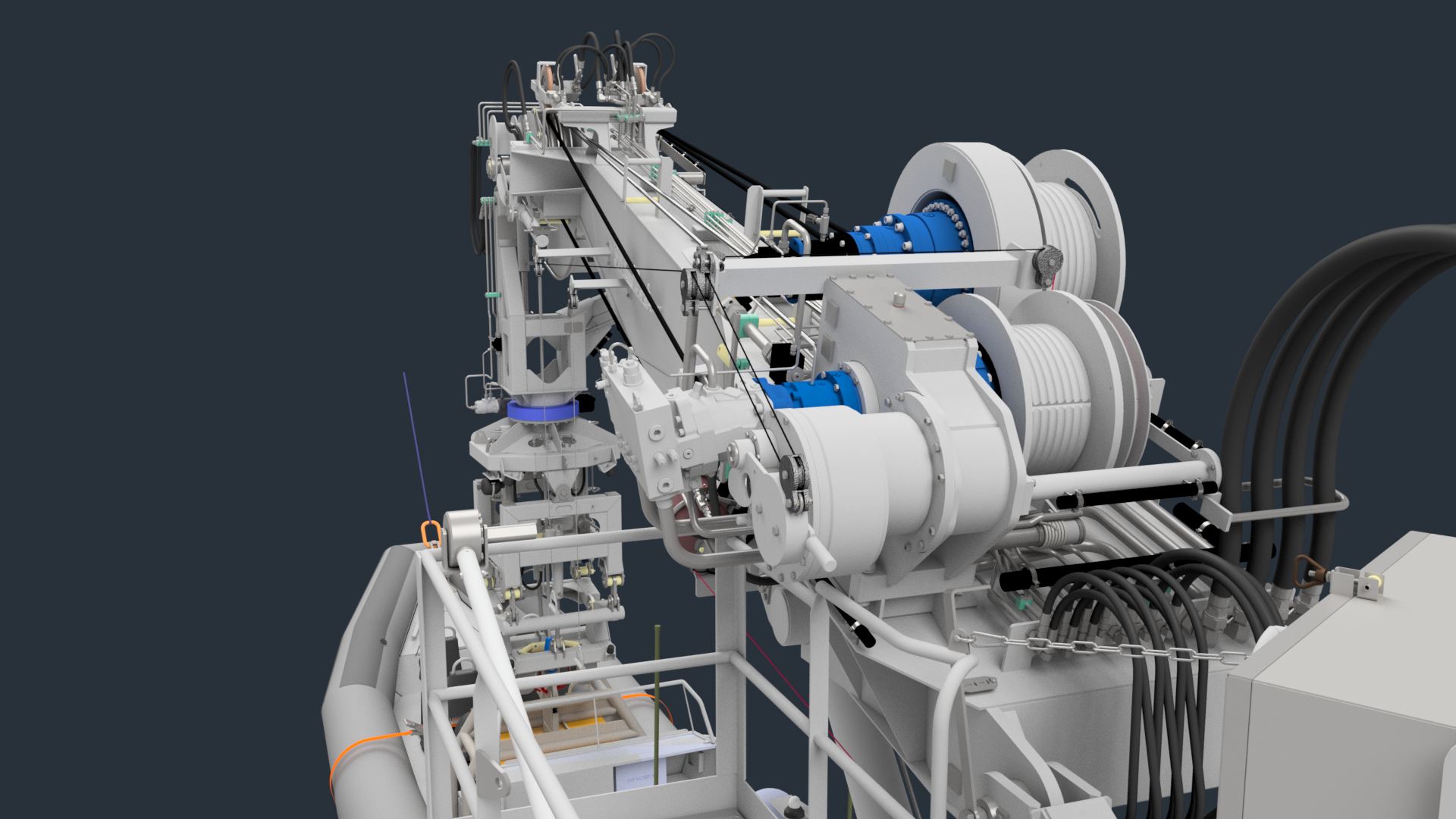

Close-up of the winch arrangement and hydraulic drives of a slewing rescue boat crane — Winch arrangement · hydraulic drives · detail

Deck service

Combined & provision cranes

Deck cranes designed for the routine handling of stores, equipment and survival craft, including free-fall boats, on board.

Offshore

Platform & offshore cranes

Remote-controlled cranes for unmanned platforms and vessels, optionally combined with launching arrangements for life rafts, rescue boats or stretchers.

Explosion proof

Hose handling cranes

Hose handling cranes with a dedicated external HPU or powered by the vessel’s hydraulic system.

Telescopic davits

Telescopic side davits and stern-mounted launch and recovery systems for lifeboats, tender boats, work boats and specialized payloads. The davit extends for deployment and recovery and retracts for compact stowage. Hydraulic and wire-rope mechanisms can be combined to achieve lightweight solutions tailored to specific operational requirements.

Telescopic stern davit with the arm extended, holding a work boat outboard — Telescopic stern davit · arm extended · SWL 2,6 t

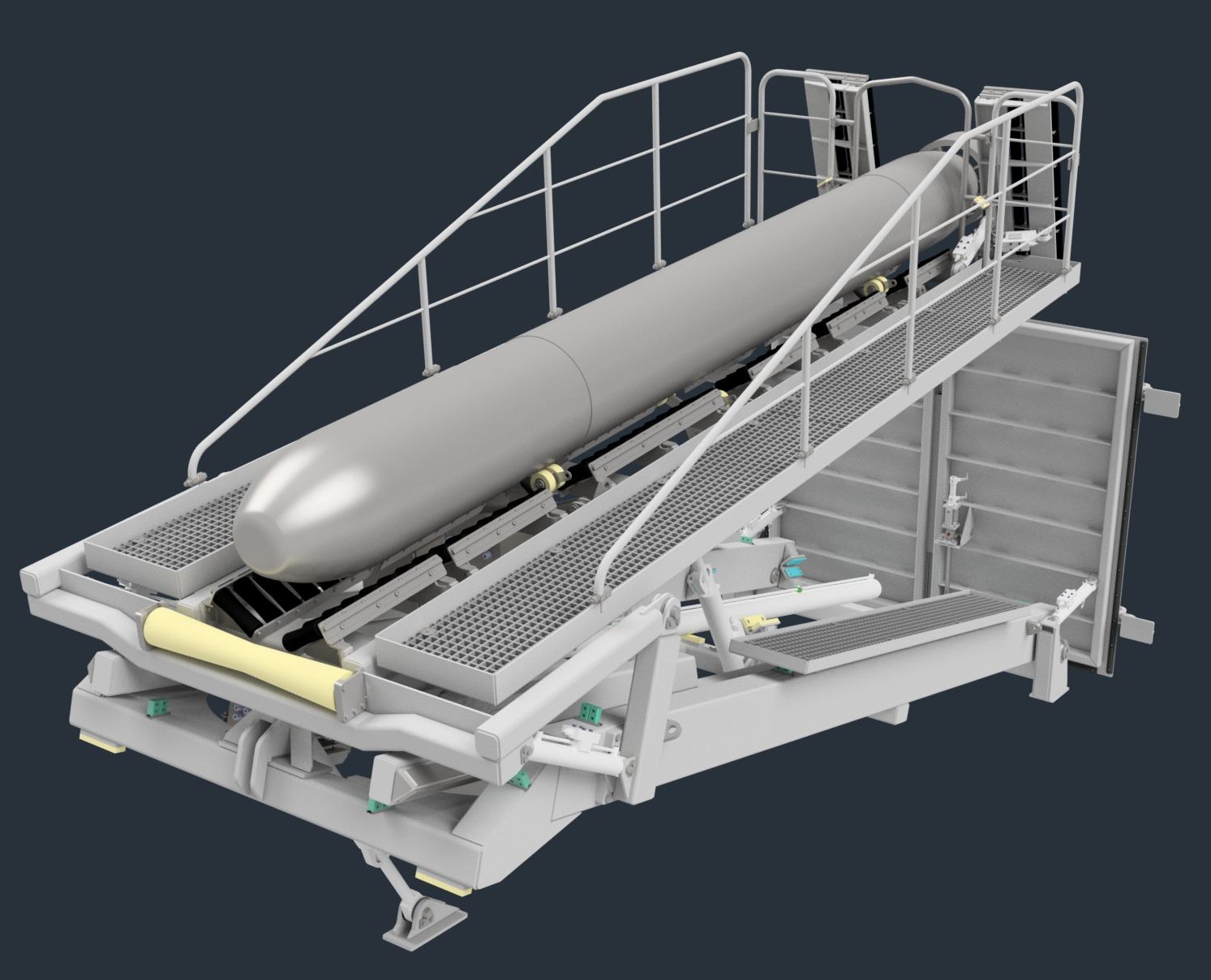

Stern launch and recovery system for a specialized payload in the stowed position — Stern launch & recovery · specialized payload

Side davit

Life-saving & tender

Davits combining life-saving and daily tender operations in a single installation.

Stern davit

Launch & recovery

Designed for rapid deployment and recovery of high-speed work boats while the vessel remains at cruising speed.

Specialized payload

Custom-made

Purpose-built for specialized payloads, including naval equipment, survey systems and side-scan sonars.

See the systems in action on the Projects page

From concept to certification

Every system on this page can be taken through the full trajectory: concept design, detailed design, strength and FEM analysis, and the class approval process with Bureau Veritas, DNV, Lloyd’s Register or RMRS.

Discuss your system
